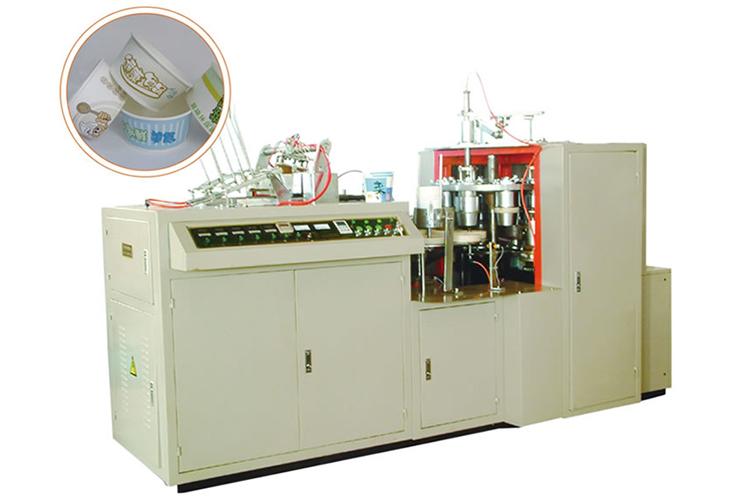

ZW-D Automatic Paper Bowl Forming Machine

Sanxing company selected outstanding products in various fields,
Ensure the quality and effectiveness of your business.

Performance features

ZW-D paper cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping and troubles warning, counting, etc. It is the idea equipment for producing paper bowl, fast noodles bowl and other large paper containers. If you need double pe coated paper bowls or paper gram higher 300kg,we recommend you to add the ultrasonic set for the machine, it can produce single pe coated paper cups and double pe coated paper cups

Technical parameters

纸碗尺寸 Bowl size

20-50盎司及其他规格(20-50 ounces and others)

纸张厚度 Required paper

150-300g/m2单面淋膜或双面淋膜纸 Single and Double sides film coated paper

生产能力 Rated productivity

40-45pcs/min

电源     Electrical supply

220V 50Hz或者 or 380V 50Hz

总功率   Total power

4kw

重量     Weight

2000kg

外形尺寸 Overall dimensions

3200*1500*1700 mm
